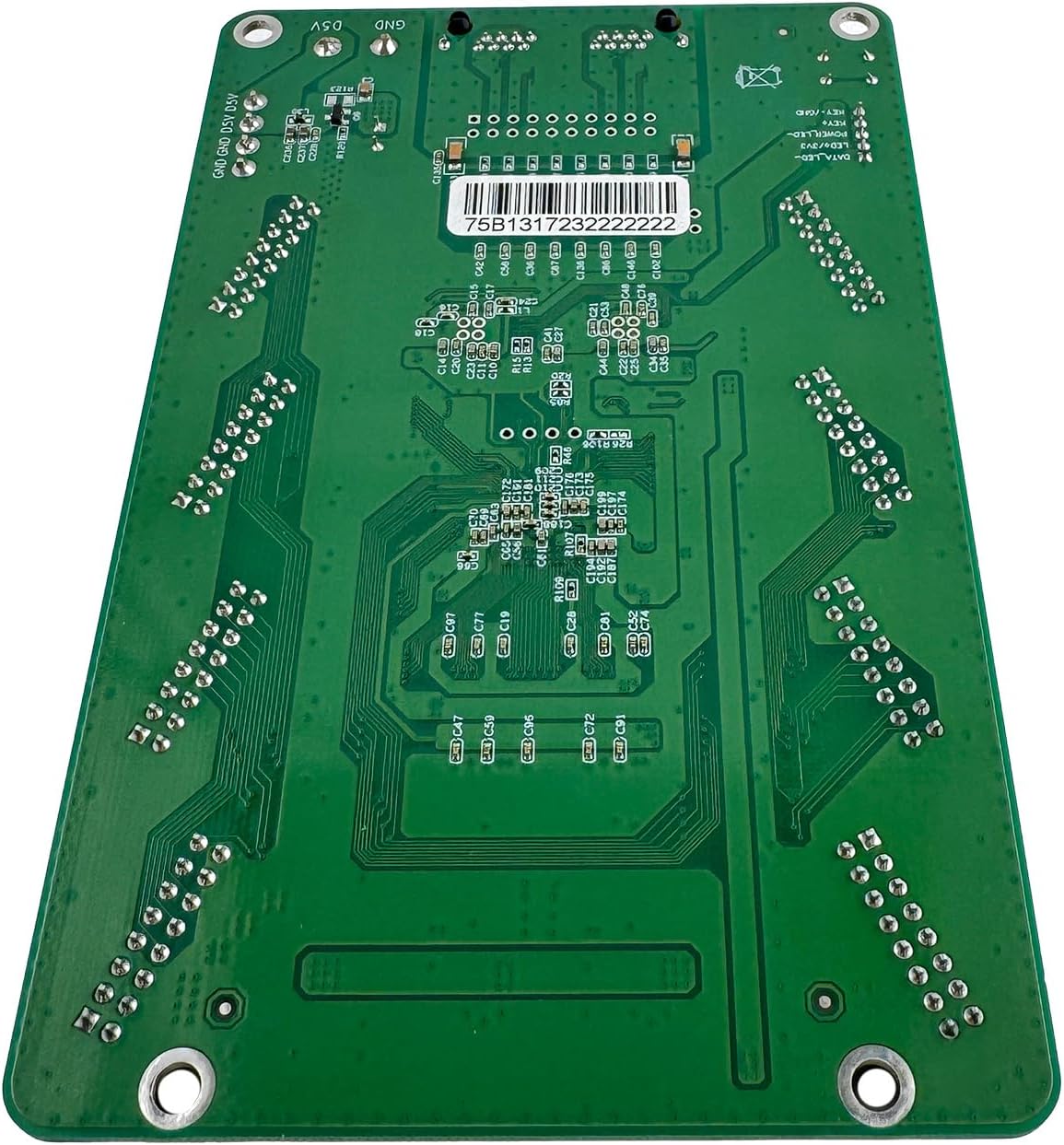

Colorlight 5A-75B LED Receiving Card | Reliable Controller Board for Indoor & Outdoor LED Displays, Digital Billboards, Video Walls & Signage | Compatible with HUB75, 240Hz, and Full-Color LED Modules

Colorlight 5A-75B LED Receiving Card: Stability Meets Precision in LED Display ControlCost-Efficient Control for Professional LED Display Setups The Colorlight 5A-75B is a value-optimized receiving card designed to deliver stable, high-quality performance in both indoor and outdoor LED screen systems. Built with an integrated HUB75 interface, it eliminates the need for separate hub boards, minimizing failure points and simplifying installation. Whether used in digital billboards, commercial video walls, or modular signage, the 5A-75B ensures accurate pixel management across various LED module types.240Hz Frame Rate & Low Brightness Gray Integrity for Seamless Visuals For applications that demand smooth motion and clear visuals, the 5A-75B supports adaptive frame rates up to 240Hz. This advanced capability reduces drag and enhances playback fluidity, making it ideal for high-speed video content. By optimizing gamma curves, the card also maintains rich grayscale detail even under low brightness, ensuring your LED displays deliver consistent image depth at any lighting level.Comprehensive Compatibility with Indoor, Outdoor & Shaped Screens Supporting up to 192×1024 pixels with PWM ICs and compatible with Normal and Shixin chips, the 5A-75B offers unmatched versatility. It handles up to 16 parallel or 32 serial data groups—expandable to 128 serial groups—for flexible control of shaped screens and creative installations. With compatibility across scan types up to 1/128, it's perfect for modular LED display environments with diverse configurations.Reliable Operation with Built-In Redundancy and Real-Time Monitoring Designed for 24/7 continuous operation, the 5A-75B includes loop redundancy, firmware backup, and real-time Ethernet monitoring. When unexpected cable or power issues occur, automatic failover ensures your display system stays online without interruption. Integrated diagnostic tools like bit error detection and cabinet highlighting allow for faster maintenance and greater operational confidence.Smart Features for Streamlined Setup & Maintenance The card supports pixel-to-pixel calibration in both brightness and chromaticity, enhancing uniformity across your LED panels. With cabinet highlight, Quick OSD, and image rotation (90°, 180°, 270°), it simplifies setup, alignment, and ongoing monitoring. Data group offset features make it suitable for special-shaped displays, while firmware updates are easily managed through quick release mechanisms—no downtime, no disruption.Smooth Upgrade Path from 5A-75E to 5A-75B Already using the 5A-75E? The 5A-75B is fully compatible, offering a more cost-effective and stable option while preserving the performance you rely on. It retains the core architecture of the 5A-75E while integrating enhancements for system stability, lower failure rates, and simplified cabling. Whether scaling an LED wall or updating legacy systems, it’s a drop-in solution that future-proofs your LED control.Ideal ApplicationsOutdoor LED Signage and High-Brightness Video WallsIndoor LED Screens for Control Rooms, Retail Displays, and ExhibitionsModular or Shaped LED Configurations with Custom LayoutsReal-Time Visual Content Management in Event & AV SystemsWhy Choose the Colorlight 5A-75B from AzarPixel?Integrated HUB75 Interface for Simplified WiringHigh Frame Rate Support (Up to 240Hz) for Smooth Motion PlaybackPixel-Level Calibration for Enhanced Color ConsistencyLoop and Firmware Redundancy for Mission-Critical StabilityFully Compatible with 5A-75E for Effortless UpgradesTechnical OverviewInput Voltage: DC 3.8–5.5VPower Consumption: 3.0WEthernet Transmission Rate: 1GbpsDimensions: 145.2mm × 91.7mm × 18.4mmWeight: 82gOperating Temperature: −25°C to +75°CCertifications: RoHSUpgrade your LED display system with the Colorlight 5A-75B — where reliability, precision, and cost-efficiency come together.

• [𝗢𝗽𝘁𝗶𝗺𝗶𝘇𝗲𝗱 𝗣𝗲𝗿𝗳𝗼𝗿𝗺𝗮𝗻𝗰𝗲 𝗳𝗼𝗿 𝗜𝗻𝗱𝗼𝗼𝗿 & 𝗢𝘂𝘁𝗱𝗼𝗼𝗿 𝗟𝗘𝗗 𝗗𝗶𝘀𝗽𝗹𝗮𝘆𝘀]: Colorlight 5A-75B receiving card is engineered to deliver seamless control for indoor and outdoor LED display setups including video walls, digital billboards, and commercial signage. With compatibility across PWM, Shixin, and standard modules, it offers a maximum load capacity of 192×1024 pixels and supports up to 240Hz high frame rates. Its optimized gamma algorithm ensures superior grayscale integrity at low brightness, ideal for demanding visual environments.
• [𝗜𝗻𝘁𝗲𝗴𝗿𝗮𝘁𝗲𝗱 𝗛𝗨𝗕𝟳𝟱 𝗜𝗻𝘁𝗲𝗿𝗳𝗮𝗰𝗲 𝘄𝗶𝘁𝗵 𝗖𝗼𝘀𝘁-𝗘𝗳𝗳𝗲𝗰𝘁𝗶𝘃𝗲 𝗩𝗲𝗿𝘀𝗮𝘁𝗶𝗹𝗶𝘁𝘆]: Designed with 8 standard HUB75 interfaces, the 5A-75B eliminates the need for additional hub boards, simplifying system architecture and reducing failure points. Its integrated structure allows easy connection to full-color LED display modules, while flexible data handling of 16 parallel or 32 serial RGB groups (expandable to 128 serial) ensures broad compatibility across shaped screens and modular configurations without compromising performance.
• [𝗔𝗱𝘃𝗮𝗻𝗰𝗲𝗱 𝗖𝗮𝗹𝗶𝗯𝗿𝗮𝘁𝗶𝗼𝗻 & 𝗜𝗺𝗮𝗴𝗲 𝗖𝗼𝗻𝘁𝗿𝗼𝗹 𝗖𝗮𝗽𝗮𝗯𝗶𝗹𝗶𝘁𝗶𝗲𝘀]: The 5A-75B supports 8bit pixel-level brightness and chromaticity calibration to eliminate color inconsistency across LED cabinets. Combined with image rotation at 90°, 180°, and 270°, data group offset, and real-time cabinet highlight/OSD features, it enables precise adjustments and easy maintenance. These functions ensure image alignment and clarity, especially in complex installations like curved or asymmetric digital signage screens.
• [𝗕𝘂𝗶𝗹𝘁-𝗜𝗻 𝗥𝗲𝗹𝗶𝗮𝗯𝗶𝗹𝗶𝘁𝘆 𝗳𝗼𝗿 𝗖𝗼𝗻𝘁𝗶𝗻𝘂𝗼𝘂𝘀 𝟮𝟰/𝟳 𝗢𝗽𝗲𝗿𝗮𝘁𝗶𝗼𝗻]: Engineered for non-stop performance, the 5A-75B features loop redundancy, firmware backup, and Ethernet cable monitoring. In case of power or cable failure, the system seamlessly switches to the backup, ensuring uninterrupted operation. With 2KV anti-static resistance and a wide working temperature range from -25°C to +75°C, it's ideal for mission-critical LED control systems in public displays or outdoor environments.
• [𝗕𝗮𝗰𝗸𝘄𝗮𝗿𝗱-𝗖𝗼𝗺𝗽𝗮𝘁𝗶𝗯𝗹𝗲 𝘄𝗶𝘁𝗵 𝟱𝗔-𝟳𝟱𝗘 𝗳𝗼𝗿 𝗘𝗮𝘀𝘆 𝗨𝗽𝗴𝗿𝗮𝗱𝗲𝘀]: Offering a smart transition path, the 5A-75B retains the proven architecture of the 5A-75E while optimizing cost and stability. It supports the same control systems and display module types, making it easy to upgrade existing LED video wall installations without overhauling infrastructure. This makes it a perfect drop-in replacement or cost-effective alternative for large-scale commercial and entertainment LED applications.
